$116.45
Praxis Type-3 E-Cranks
EC-TYPE3
These MTN eCranks are best for eBikes with :
- TQ-HPR50 & New HPR-60
- Specialized New Levo4
- Brose Mag Family
- Fazua-R50
- SRAM Powertrain
- Bafang M800
| SPECIFICATIONS | |
|---|---|
| INTRUCTIONS | ⚠️ VIEW MANUAL HERE |
| BUY THIS IF : | You have an eMTN bike with either a Brose Mag family, FazuaR50, TQ-HPR50 Bafang M800 motor or the new Specialized Levo4 |
| MOTOR | BROSE Mag Family-With steel ISIS spline spindle FAZUA-R50 -With steel ISIS spline spindle TQ-HPR50/HPR60 -With steel ISIS spline spindle Bafang M800 -With steel ISIS spline spindle Specialized Levo4 -With steel ISIS spline spindle |

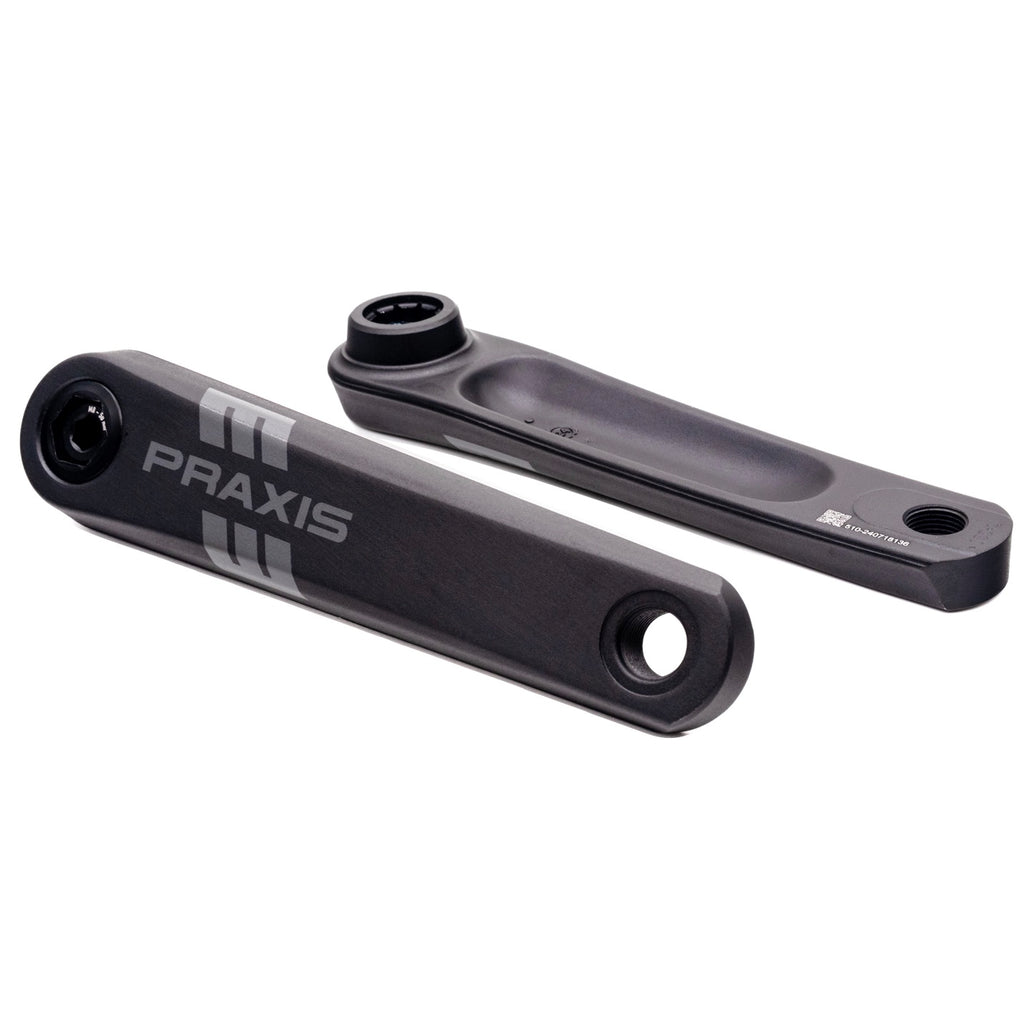

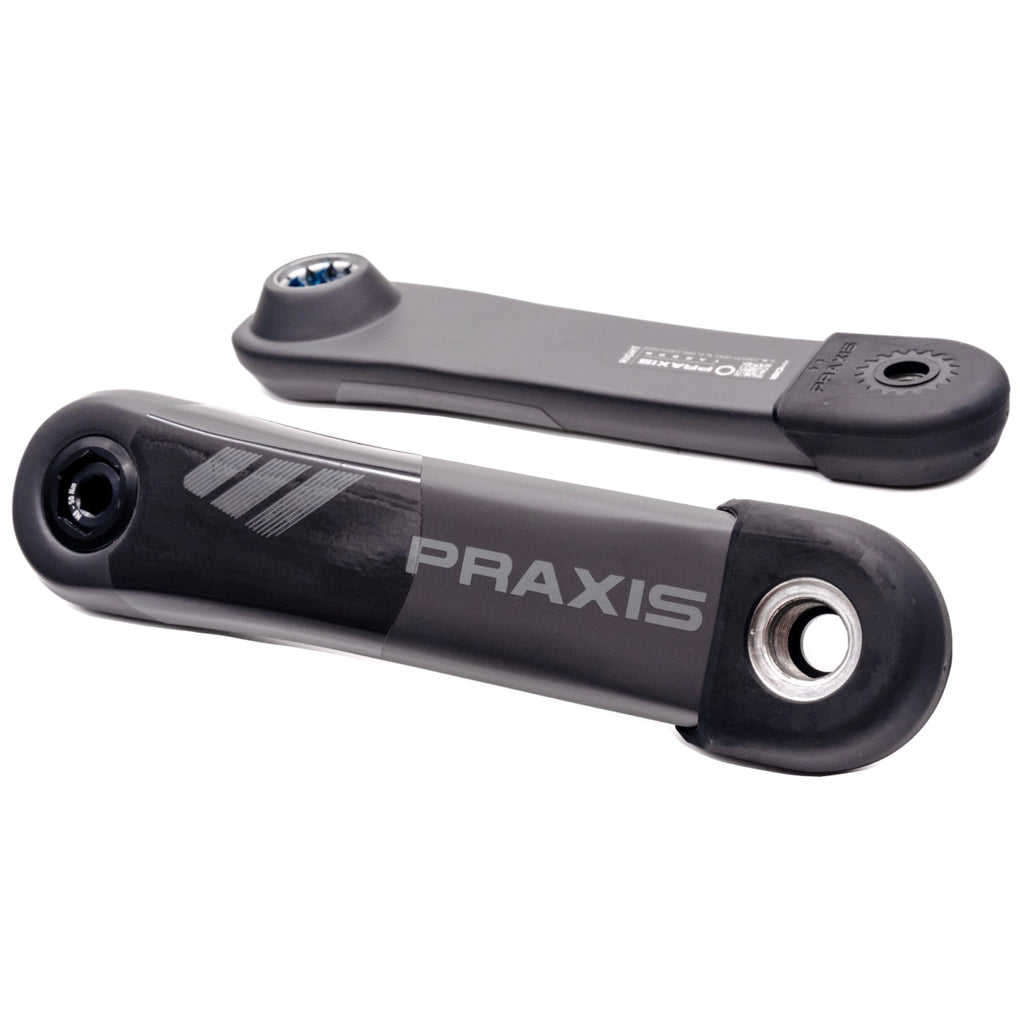

| MATERIAL | Left & Right arm set - Carbon Fiber (with rubber boots) - Alloy |
| AVG. WEIGHT | ALLOY = 520g CARB = 460g |
| Q-Factor | Qfactors when you install this crank on these motors : Q = 171mm : on FazuaR50 motor Q = 171mm : on TQ-HRP50/HPR60 motor Q = 172mm : on Levo4 motor Q = 183mm : on Bafang 800 motor Q = 186mm : on Brose Mag motor Q = 186mm : on SRAM Powertrain motor |
| MAIN BOLT | 8mm AL main crank bolt for Install/Self-Extract | 50Nm torque Our eCranks with ISIS Spline use our replaceable M24 alloy Main bolt/Self extractor |
| TECH | C.R.A.F.T. Cabon Mfg. |
| VIP NOTE | VIP – Do NOT order this crank if you own a Gen 1-3 versions Specialized Levo/Kenevo/Vomo/Vado. If you have a Gen 1-3 Specialized e-bike with steel ISIS spline spindle then GO HERE. |
