$241.50

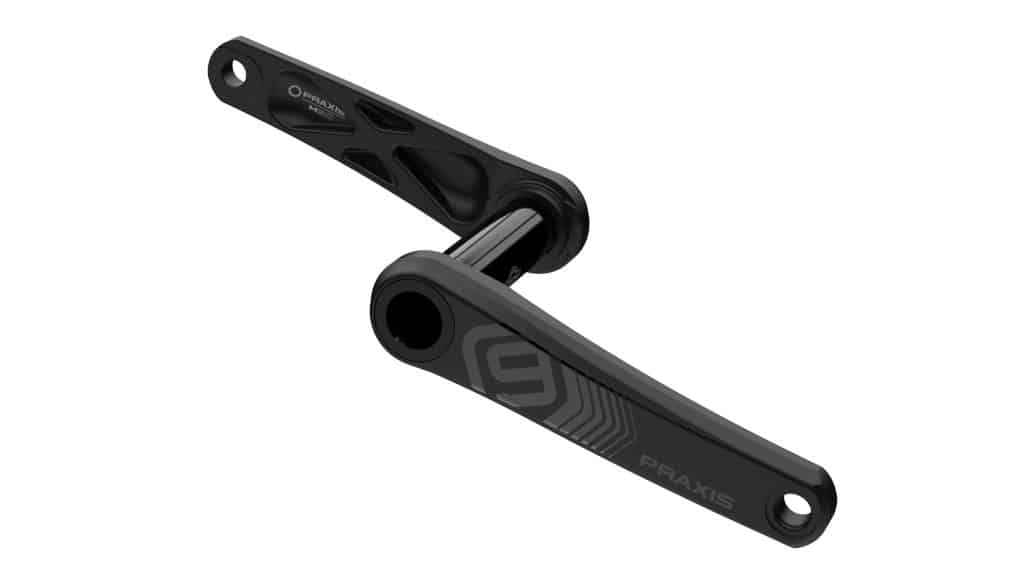

Praxis DH-9 Crankset
DH-9
Made for gravity riders and the long travel hero. One look at the 9 and you know it's made for purpose.
・DH9-73mm | For 73mm BSA / PF-BB90 / PF-BB92 frames
・DH9-83mm | For 83mm BSA / PF104.5 / PF107 frames.
| SPECIFICATIONS | ||
|---|---|---|
| INSTRUCTIONS | ⚠️ VIEW MANUAL HERE | |
| CRANK / USE | DH9-83 | For frames 83mm BSA / PF104.5 / PF107 frames. DH9-73 | For frames 73mm BSA / PF-BB90 / PF-BB92 frames. |
|
| BUY THIS IF : | You are looking for a versitaile gravity focussed crank for your long travel DH bike. | |
| MATERIAL | ALLOY | Reinforced Forged Alloy | Alloy M30 spindle (30mm/28mm) | |
| Ref. WEIGHT | 650g : 165mm ARMSET | |
| RING/ INTERFACE |
DM 3-BOLT INTERFACE - PRAXIS DM1X RINGS HERE - Any brand 3-Bolt Direct Mount ring can be used for Shimano or SRAM chain compatibility. The chainring type and offset determines compatibility with any given MTN bike drivetrain. |
|
| ⚠️ DH CHAINLINE |
DH9-83 crank chainline : 57mm CHAINLINE : Use 3mm Offset Ring 60mm CHAINLINE : Use 0mm OFFSET RING DH9-73 crank chainline : 55mm CHAINLINE : Use 0mm Offset Ring 52mm CHAINLINE : Use 3mm OFFSET RING |
|
| Q-Factor | DH9-83 = 186MM Q DH9-73 = 172MM Q |
|
| MAIN BOLT |
M30 MAIN BOLT/SELF-EXTRACTOR 8mm Alloy Main crank bolt for Install/Self-Extract |
|
| B.B. |
M30 BB REQUIRED DH9-83 = BSA 83mm | PF41 x 104.5mm | PF41 x 107mm DH9-73 = BSA 73mm | PF41 BB90 | PF41 BB92 |
|
| ⚠️ NOTE |
PIVOT PHOENIX GUIDE This bike uses the DH9-73 crank and our M30-PF41 BB92 BB. |
